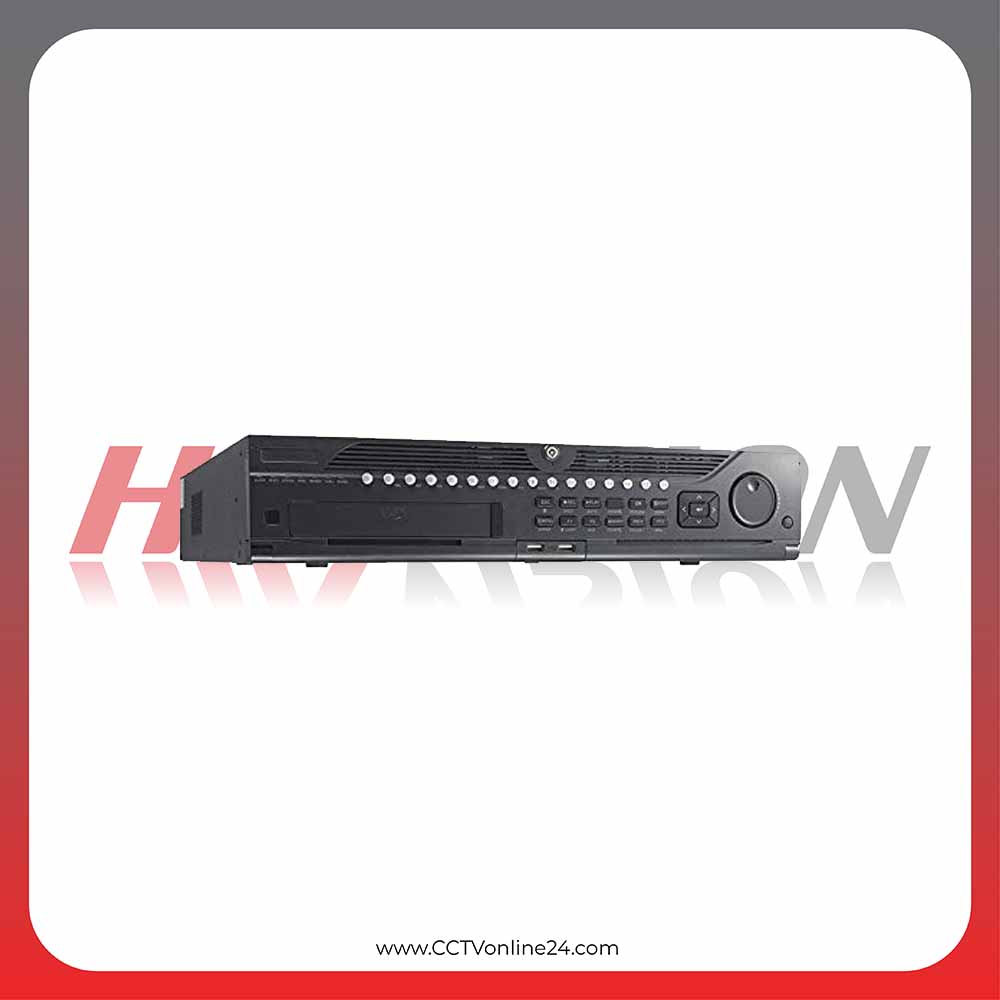

NVR Hikvision DS-9632NI-I8(8×10T AI HDD) 32-ch 2U 4K NVR
Spesifikasi NVR Hikvision DS-9632NI-I8(8×10T AI HDD) 32-ch 2U 4K NVR :
- Up to 32 channel IP cameras can be connected
- Up to 12 MP high-definition live view, storage and playback
- Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
- 2 HDMI (different source) and 2 VGA (different source) interfaces
- 8 HDD can be used for continuous video recording
- Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
CALL FOR PRICE
Deskripsi
Spesifikasi NVR Hikvision DS-9632NI-I8(8×10T AI HDD) 32-ch 2U 4K NVR :
- Up to 32 channel IP cameras can be connected
- Up to 12 MP high-definition live view, storage and playback
- Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
- 2 HDMI (different source) and 2 VGA (different source) interfaces
- 8 HDD can be used for continuous video recording
- Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
- Advanced streaming technology enables smooth live view in poor network conditions
- Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks
Network Video Recorder Hikvision
Network Video Recorder (NVR) Hikvision memberikan kemampuan kecerdasan buatan tingkat lanjut untuk setiap aliran data yang terhubung, bahkan dari kamera keamanan konvensional. Didukung oleh chip AI dan algoritme presisi tinggi, NVR Hikvision menggabungkan perekaman video berefisiensi tinggi dengan beberapa opsi untuk analitik data. NVR canggih ini memberikan aplikasi yang kuat ke berbagai pengguna dengan beragam kebutuhan.
Sekilas Mengenai Brand Hikvision
Hikvision adalah penyedia produk dan solusi keamanan yang terkemuka di dunia. Menghadirkan tenaga kerja litbang yang luas dan sangat terampil, Hikvision memproduksi rangkaian lengkap produk dan solusi menyeluruh untuk berbagai pasar vertikal. Selain industri keamanan, Hikvision memperluas jangkauan ke teknologi rumah pintar, otomatisasi industri, dan industri elektronik otomotif untuk mencapai visi jangka panjang. Produk Hikvision juga memberikan kecerdasan bisnis yang andal bagi pengguna akhir, yang dapat memungkinkan operasi yang lebih efisien dan kesuksesan komersial yang lebih besar.
Hikvision mengkhususkan dalam teknologi video surveillance, serta merancang berbagai produk CCTV dan video surveillance yang inovatif. Perusahaan yang berasal dari China ini melengkapi berbagai koleksi produknya mulai dari Smart IP cameras, HD analog cameras, speed domes, NVRs, DVRs, software pengelola video, access control dan alarm systems, encoders, decoders, hingga berbagai elemen canggih untuk sistem keamanan.
CCTVonline24 menyediakan NVR Hikvision dengan harga terjangkau, kualitas terbaik, bergaransi dan terpercaya. Untuk pemesanan Anda dapat menghubungi kami di 021-2256 6665 atau WA 0895 1888 1777 / WA 0896 1888 1777.
Informasi Tambahan
| IP Video Input | 32-ch, Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs. |
|---|---|
| Incoming Bandwidth | 320 Mbps, Incoming bandwidth (RAID mode) 200 Mbps |
| Outgoing bandwidth | 256 Mbps, Outgoing bandwidth (RAID mode) 200 Mbps |
| HDMI Output | HDMI1 output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output, HDMI2 output 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output |
| VGA Output | VGA 1 Output 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz, VGA 2 Output 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| Video Output | HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output, HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Out | 2-ch, RCA (Linear, 1 K Ω) |
| Two-way Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding Format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Recording Resolution | *: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs., 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-ch |
| Capability | 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps) |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface | 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| SATA | ESATA 1 eSATA interface, SATA 8 SATA interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| Alarm I/O | 16/4 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | ≤ 30 W (without HDD) |
| Working Temp / Humidity | Working Humidity 10％～90％, Working Temperature -10 °C to 55 °C (14 °F to 131 °F) |
| Chassis | 3U chassis |
| Dimension | (W × D × H) 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6") |
| Weight | ≤ 10 kg (22 lb) |
| Certifications | CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, FCC Part 15 Subpart B, ANSI C63.4-2014 |
