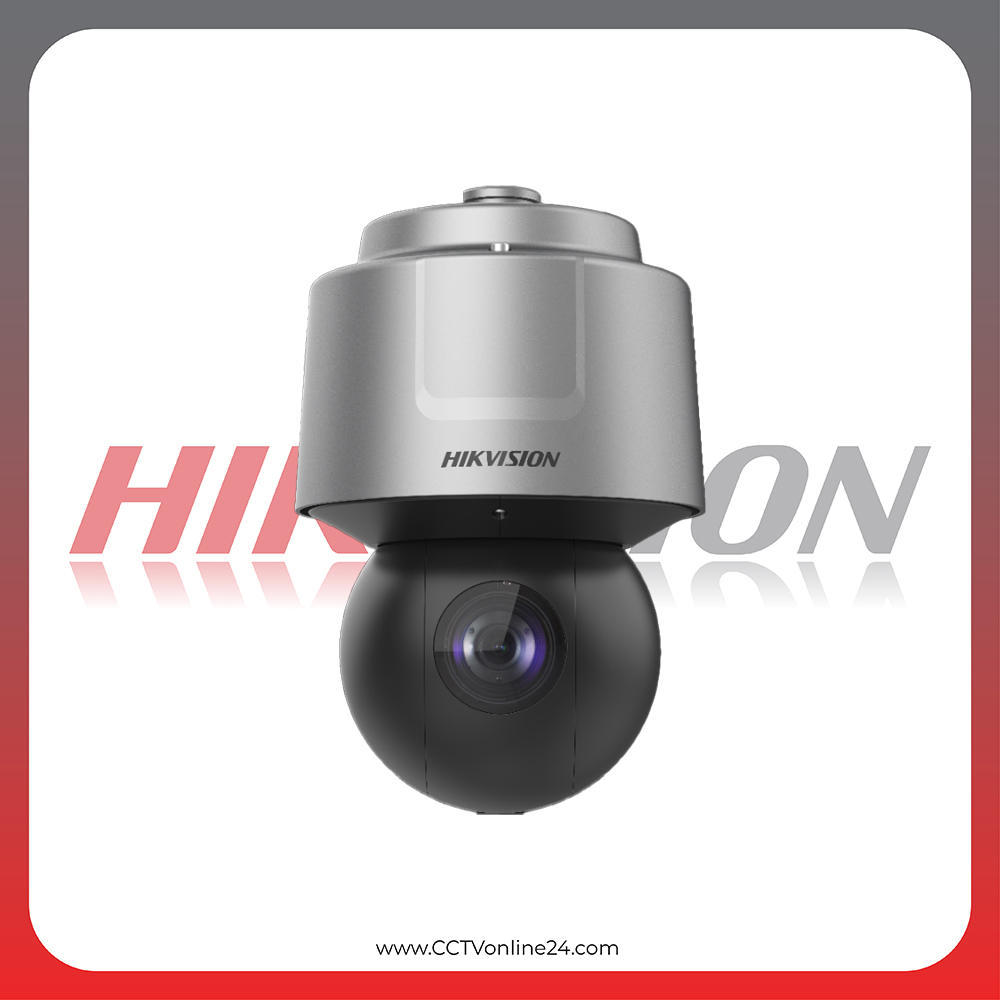

Hikvision DS-2DF6A436X-AEL(T3) 6-inch 4 MP 36X DarkFighter Network Speed Dome
SpesifikasI Hikvision DS-2DF6A436X-AEL(T3) 6-inch 4 MP 36X DarkFighter Network Speed Dome :
- 1/1.8″ Progressive Scan CMOS
- Up to 2560 × 1440 resolution
- Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ ((F1.2, AGC ON)
- 36× optical zoom, 16× digital zoom
- Support Shake Detection
- Built-in gyroscope to improve EIS performance.
- 140dB WDR, 3D DNR, HLC
- 24 VAC & Hi-PoE
- Support H.265+/H.265 video compression
- Rapid focus
- IP67
CALL FOR PRICE
Description
SpesifikasI Hikvision DS-2DF6A436X-AEL(T3) 6-inch 4 MP 36X DarkFighter Network Speed Dome :
- 1/1.8″ Progressive Scan CMOS
- Up to 2560 × 1440 resolution
- Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ ((F1.2, AGC ON)
- 36× optical zoom, 16× digital zoom
- Support Shake Detection
- Built-in gyroscope to improve EIS performance.
- 140dB WDR, 3D DNR, HLC
- 24 VAC & Hi-PoE
- Support H.265+/H.265 video compression
- Rapid focus
- IP67
Sekilas Mengenai Brand Hikvision
Hikvision adalah penyedia produk dan solusi keamanan yang terkemuka di dunia. Menghadirkan tenaga kerja litbang yang luas dan sangat terampil, Hikvision memproduksi rangkaian lengkap produk dan solusi menyeluruh untuk berbagai pasar vertikal. Selain industri keamanan, Hikvision memperluas jangkauan ke teknologi rumah pintar, otomatisasi industri, dan industri elektronik otomotif untuk mencapai visi jangka panjang. Produk Hikvision juga memberikan kecerdasan bisnis yang andal bagi pengguna akhir, yang dapat memungkinkan operasi yang lebih efisien dan kesuksesan komersial yang lebih besar.
Hikvision mengkhususkan dalam teknologi video surveillance, serta merancang berbagai produk CCTV dan video surveillance yang inovatif. Perusahaan yang berasal dari China ini melengkapi berbagai koleksi produknya mulai dari Smart IP cameras, HD analog cameras, speed domes, NVRs, DVRs, software pengelola video, access control dan alarm systems, encoders, decoders, hingga berbagai elemen canggih untuk sistem keamanan.
Hikvision IP
Seiring dengan meningkatnya kebutuhan keamanan yang beragam, Hikvision mendesain dan menyesuaikan kamera jaringan untuk memenuhi berbagai kebutuhan – mulai dari pengawasan video umum hingga analisis konten video berdasarkan algoritme Deep Learning – dan lebih banyak lagi.
Memproses gambar berkualitas tinggi dengan berbagai rentang kondisi pencahayaan – sambil meminimalkan kebutuhan penyimpanan dan bandwidth – dan menyediakan kesadaran situasional berdasar data untuk membantu Anda membuat keputusan yang cerdas, kamera jaringan kami merupakan pilihan ideal bagi ratusan skenario kebutuhan.
CCTVonline24 menyediakan CCTV Hikvision IP dengan harga terjangkau, kualitas terbaik, bergaransi dan terpercaya.
Untuk pemesanan Anda dapat menghubungi kami di 021-2256 6665 atau WA 0895 1888 1777 / WA 0896 1888 1777.
Additional information
| Image Sensor | 1/1.8＂ progressive scan CMOS |
|---|---|
| Max. Resolution | 2560 × 1440 |
| Minimum Illumination | Color: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Day & Night | ICR |
| WDR | 140 dB WDR |
| Digital Zoom | 16x |
| DORI Distance | Detect(25px/m)：2979.3m Observe(63px/m)：1182.3m Recognize(125px/m)：595.9m Identify(250px/m)：297.9m |
| Focal Length | 6.0 mm to 216 mm, 36 × Optical |
| Zoom Speed | approx. 4.5 s |
| Field of View | Horizontal field of view: 56.6° to 2.0° (wide-tele), Vertical field of view: 33.7° to 1.2° (wide-tele), Diagonal field of view: 63.4° to 2.3° (wide-tele) |
| Aperture | F1.2 |
| IR Distance | Min. Working Distance 100-1500 mm |
| Pan Range | 360° |
| Tilt Range | -20° to 90° (auto flip) |
| Pan Speed | pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s |
| Tilt Speed | tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s |
| Patrol | 8 patrols |
| Pattern | 4 pattern scans |
| Park Action | preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan |
| Scheduled Task | preset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output |
| Main Stream | 50Hz: 25fps (2560 × 1440，1920×1080, 1280 × 960, 1280×720) 60Hz: 30fps (2560 × 1440，1920×1080, 1280 × 960, 1280×720) |
| Sub Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265;H.264;MJPEG |
| H.264 Type | Baseline profile, main profile, high profile |
| H.265 Type | Main Profile |
| H.264+ | yes |
| H.265+ | yes |
| Region of Interest (RoI) | dynamic face tracking;dynamic license plate tracking;dynamic target tracking |
| Audio Compression | G.722.1;G.711alaw;G.711ulaw;MP2L2;G.726;PCM |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API Network | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Web Browser | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+ |
| Security Measures | User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Privacy Mask | up to 24 masks;polygon region ;mosaic mask ;mask color configurable |
| Ethernet | 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE |
| On-Board Storage | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| Alarm | 2 alarm outputs, 7 alarm inputs |
| Audio | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω |
| RS-485 | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Basic Event | alarm input and output;motion detection;video tampering alarm |
| Smart Event | Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Audio Exception Detection;object removal detection;unattended baggage detection;vandal-proof alarm |
| Smart Tracking | manual tracking;auto-tracking;event tracking |
| Power | 24 VAC (max. 60 W, including max.10 W for heater) , Hi-PoE (max. 50 W, including max.10 W for heater) |
| Operating Conditions | Temperature: -40°C to 70°C (-40°F to 158°F)，Humidity: ≤ 95% |
| Dimensions | Φ 231.1 mm × 355.6 mm (Φ 9.10" × 14") |
| Weight | Approx. 6 kg (13.23 lb) |
| Ingress Protection | IP67 Standard;IK10;Lightning Protection, Surge Protection and Voltage Transient Protection,±6kV Line to Gnd, ±3kV Line to Line,IEC61000-4-5 |
